Ds-160
Dassaw

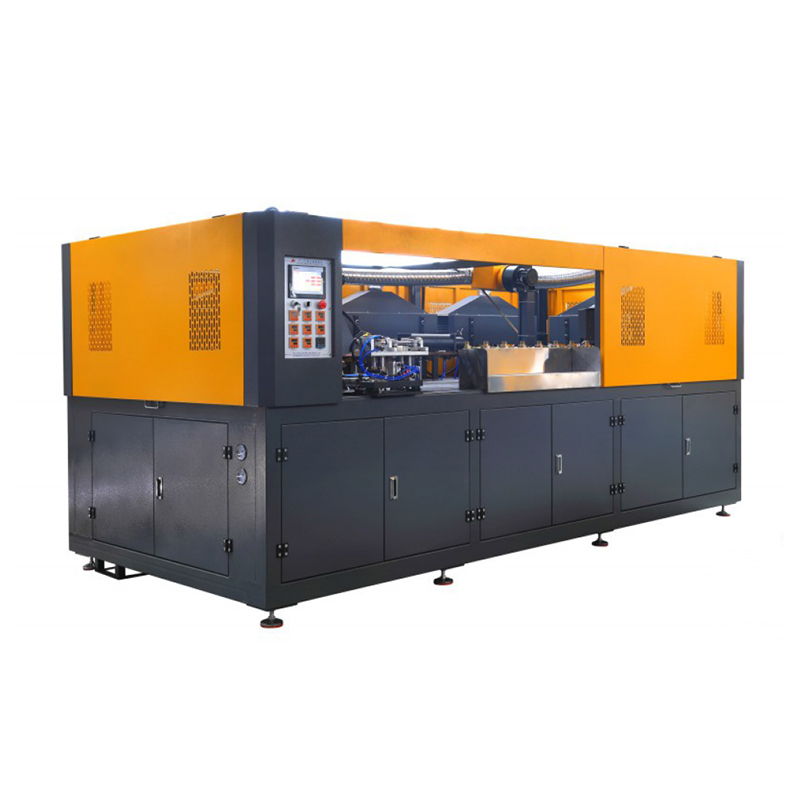

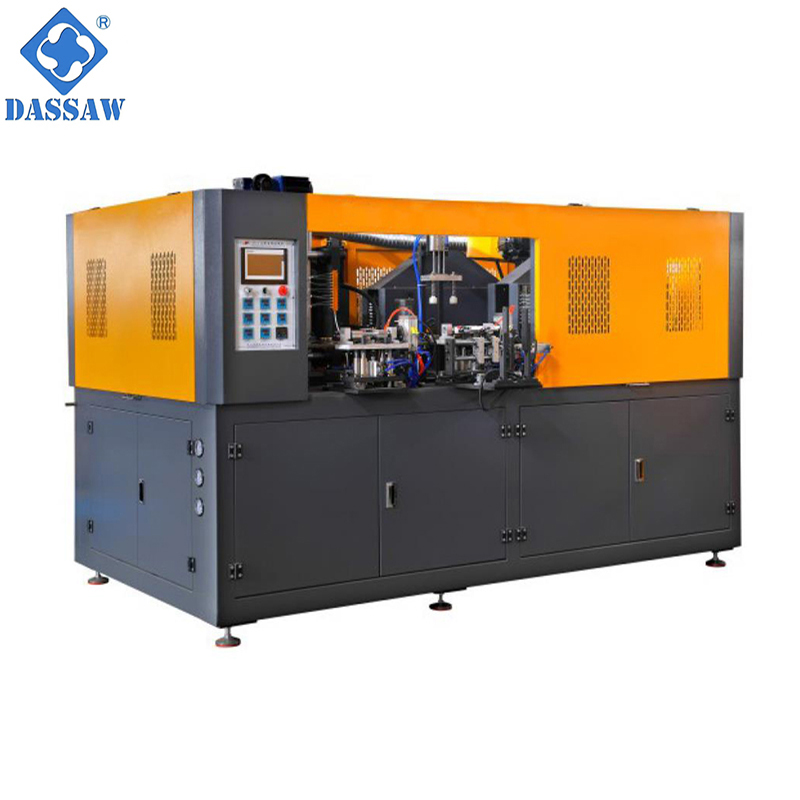

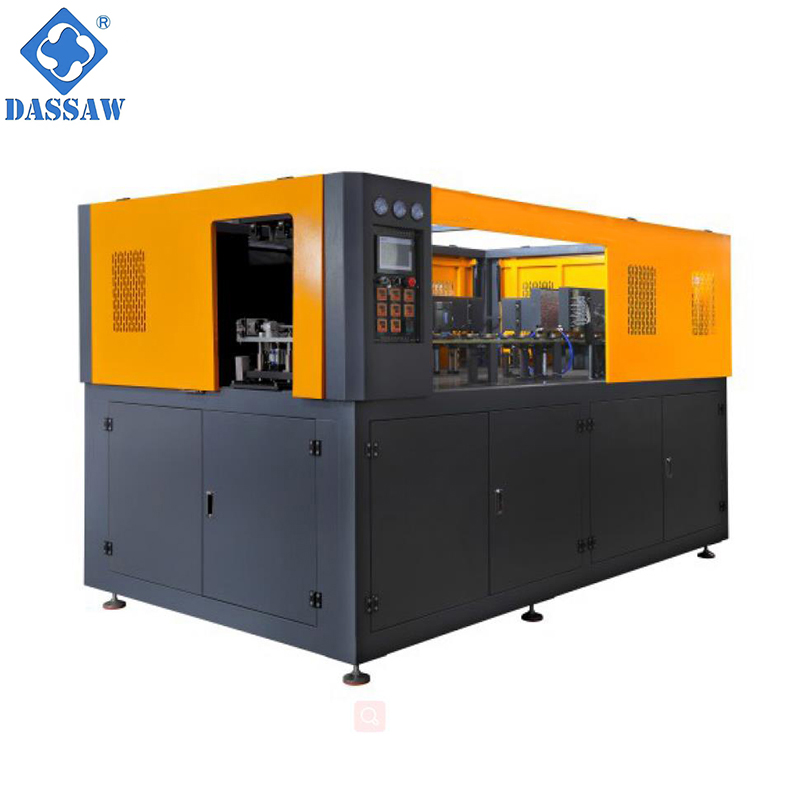

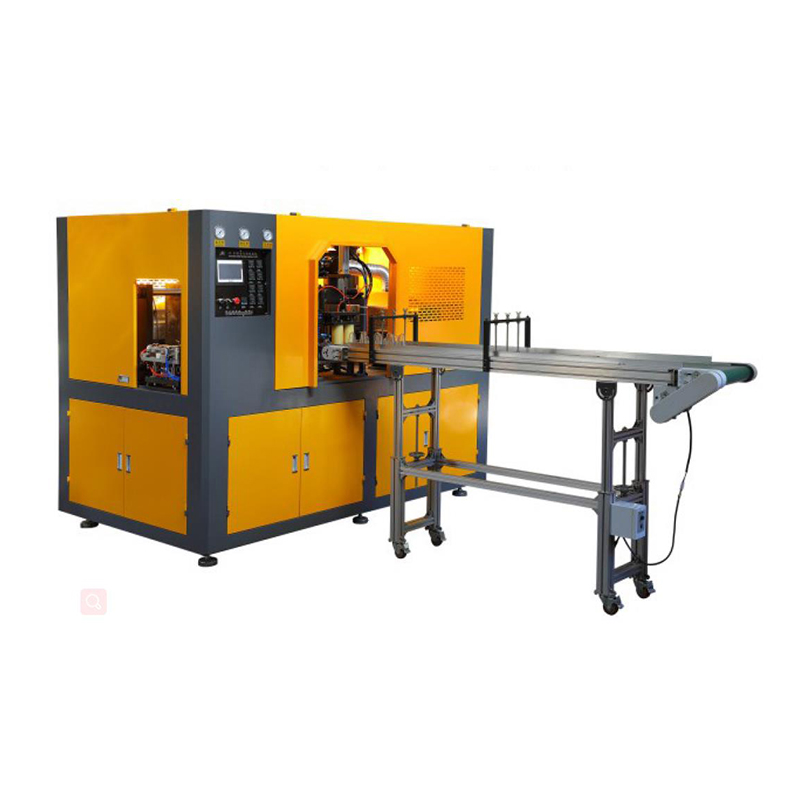

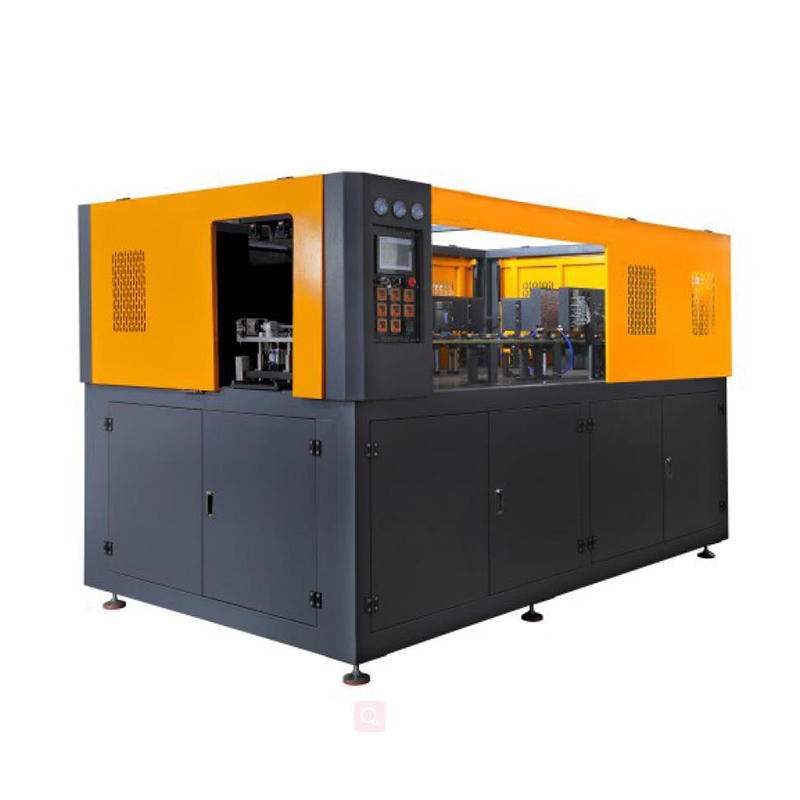

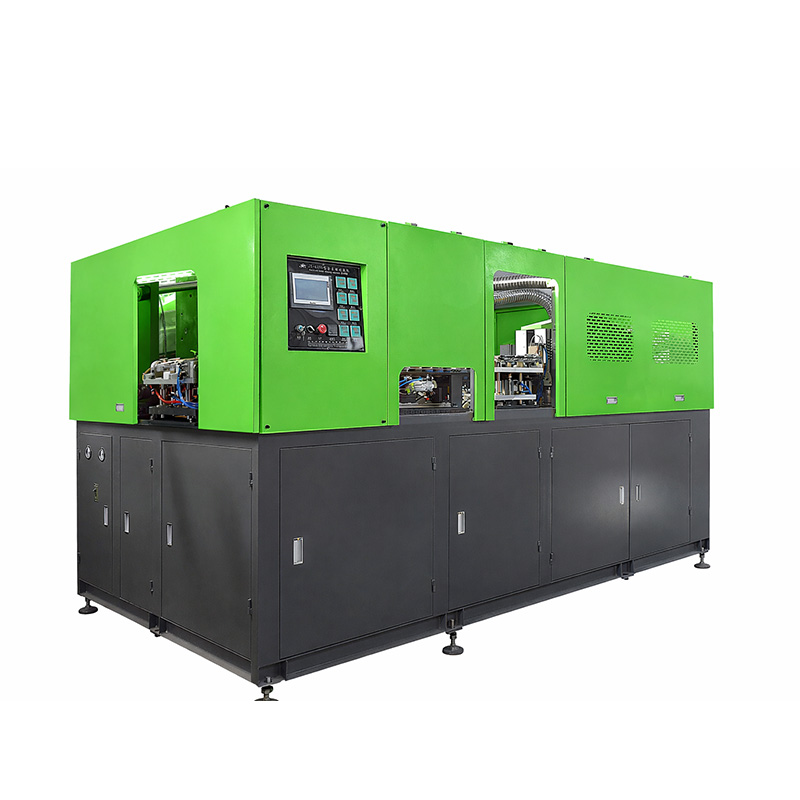

1: Ds-160 model full-automatic 1out 2 bottle blowing machine, specializing in blowing 10-3000ml capacity, suitable for blowing with PET, PC and other crystalline plastic as raw materials of various shapes of glass bottles, beverage bottles, daily chemical bottles, small wide mouth bottles and other products.
2: t can automatically feed,suck and insert the blank manually to meet the needs of different products.

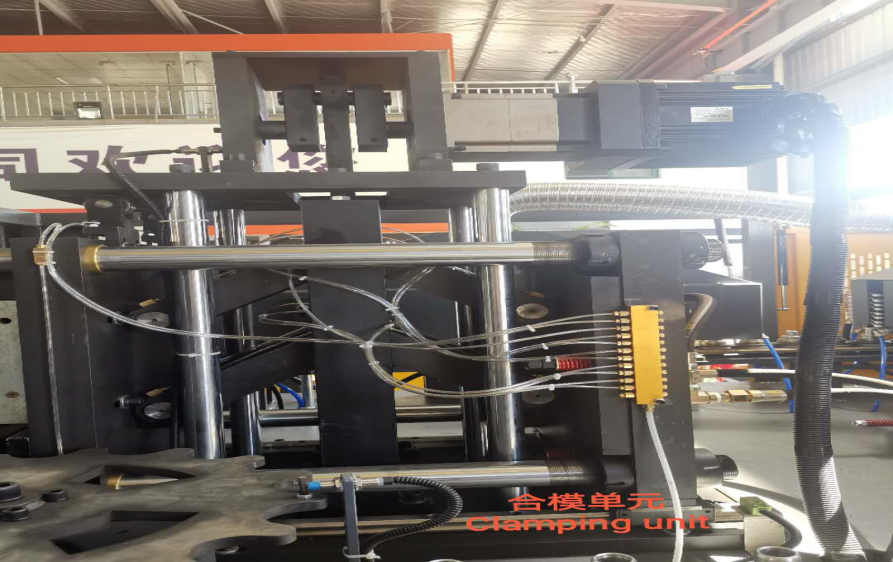

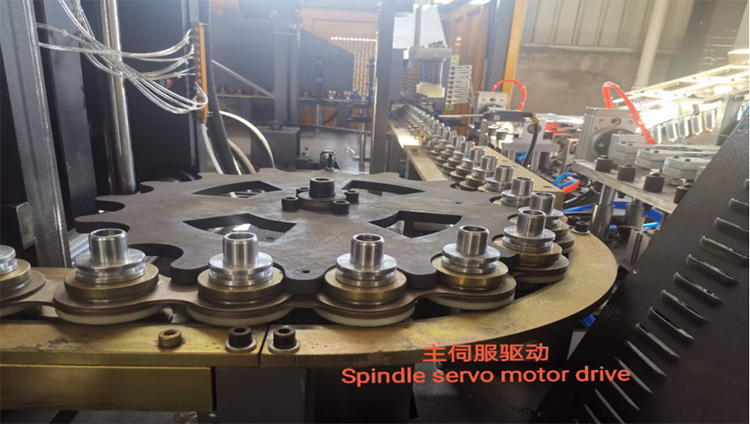

3: This machine is servo mold closing, servo shift, fast production speed, stable performance, easy to operate.
Q: Are you a factory or trading company?
A.we are factory.
Q: How long the warranty period?
A: All of products have one year warranty.
O: what is your delivery time and payment term?
A: About parts , he delivery date is usually 3-5days after payment ,For machines usually 10-20 working days after T/T 50% as deposit, when we completed the producing and packing,we will give customer the photo of goods and package.Then,customer pay the 50% balance
Q: How about the quality of machine?
A:Dassaw always pays attention to quality issues, conducts quality control from the beginning to the end, and will test the machines strictly before packaging and shipping.
Q: Can we visit your factory?
A: Yes, you are welcome to visit our factory.We are willing to show you the whole production flow.
Q: where is your factory located,how do we get there?
A: We are in Jinan City, Shandong Province. You can take the high-speed rail to Jinan West Station or by air to Yaoqiang international air port , then we will pick you up
1: Ds-160 model full-automatic 1out 2 bottle blowing machine, specializing in blowing 10-3000ml capacity, suitable for blowing with PET, PC and other crystalline plastic as raw materials of various shapes of glass bottles, beverage bottles, daily chemical bottles, small wide mouth bottles and other products.
2: t can automatically feed,suck and insert the blank manually to meet the needs of different products.
3: This machine is servo mold closing, servo shift, fast production speed, stable performance, easy to operate.
Q: Are you a factory or trading company?
A.we are factory.
Q: How long the warranty period?
A: All of products have one year warranty.
O: what is your delivery time and payment term?
A: About parts , he delivery date is usually 3-5days after payment ,For machines usually 10-20 working days after T/T 50% as deposit, when we completed the producing and packing,we will give customer the photo of goods and package.Then,customer pay the 50% balance
Q: How about the quality of machine?
A:Dassaw always pays attention to quality issues, conducts quality control from the beginning to the end, and will test the machines strictly before packaging and shipping.
Q: Can we visit your factory?
A: Yes, you are welcome to visit our factory.We are willing to show you the whole production flow.
Q: where is your factory located,how do we get there?
A: We are in Jinan City, Shandong Province. You can take the high-speed rail to Jinan West Station or by air to Yaoqiang international air port , then we will pick you up
Molding | Clamping force | 200kg |
Clamping stroke | 140mm | |
Stretching stroke | 450mm | |
Bottom stroke | 30mm | |
Cavity pitch | 115mm | |
Number of cavity | 2cavites | |
Carriage Unit | 66pcs | |
Theoretical output | 1200-1500bbh | |
Electrical System | Total power | 32kw |
Heater power | 30kw | |
Number of lamp | 16pcs | |
Air Compresor | Operating Pressure | 7kg/cm² |
Low pressure air consumption | 1200ltr/min | |
Blowing Pressure | ≤30kg/cm² | |
High pressure air consumption | 2000-2500 ltr/min | |
container | Max container volume | 3L |
Max neck outer diameter | 20-120mm | |
Max container diameter | 30-115mm | |
Max container height | 300mm | |
Preform Loader | Main machine size | 4300*2000*2100mm |
Main machine weight | 2800kg | |
Preform Loader | Preform loader size | 1900*1150*2700mm |
Preform loader weight | 350kg |
