DA-28 5-10L Semi-automatic PET Plastic Extrusion Blow Molding Machine
You are here: Home » Products » Semi-automatic Bottle Blowing Machine » DA-28 5-10L Semi-automatic PET Plastic Extrusion Blow Molding Machine

DA-28 5-10L Semi-automatic PET Plastic Extrusion Blow Molding Machine

  1. Color:Yellow、Customizable
  2. Size:1950*650*1750mm
  3. Weight:750Kg
  4. Sales:Direct Sales
  5. Min Order: 1Pc
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • DA-28

  • Dassaw

Product Description

1: DA-28 semi-automatic bottle blowing machine is suitable for 5L-10L of various shapes of oil can,handheld bag products.

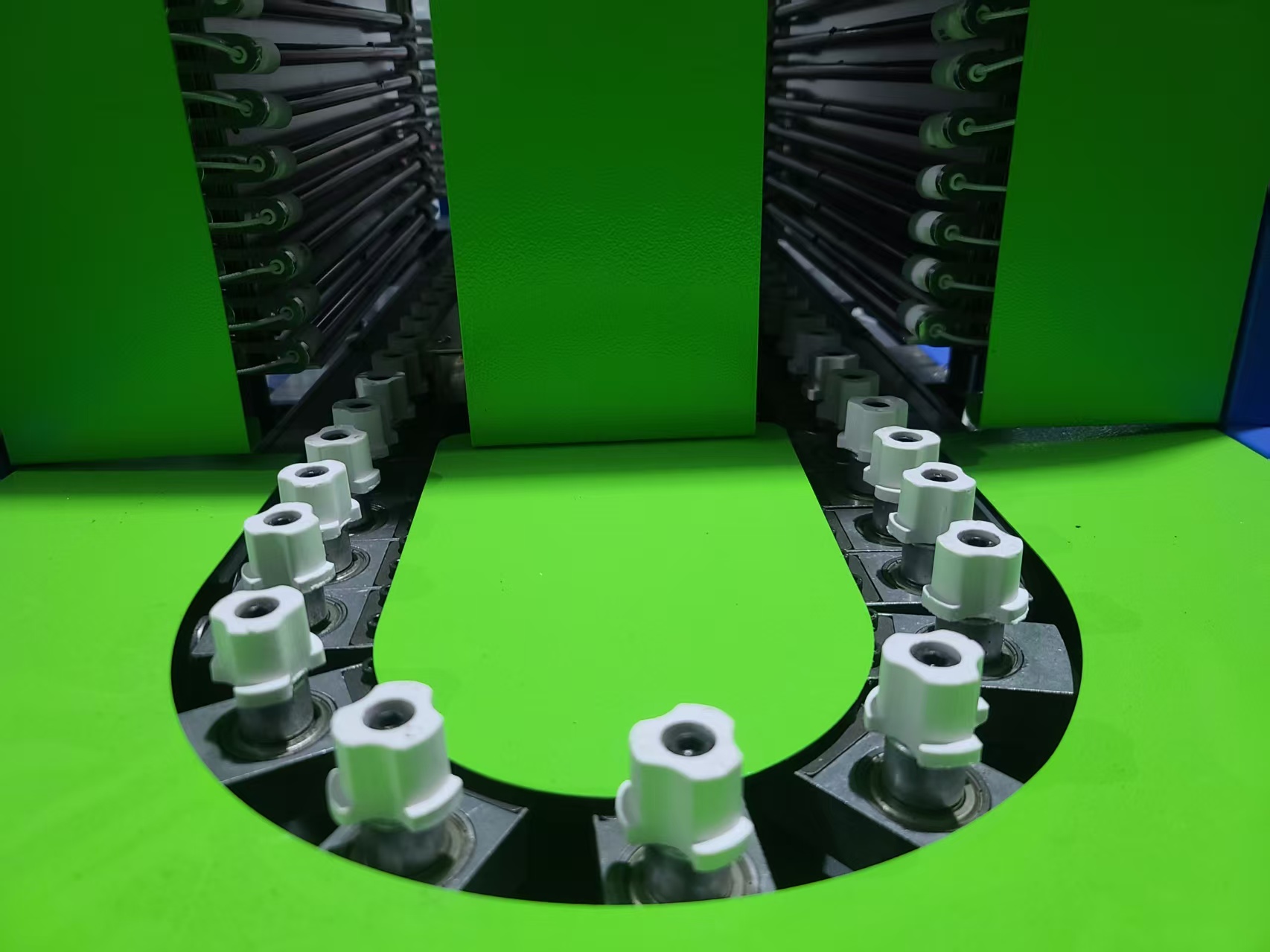

2: The machine adopts far infrared rotary oven,frequency control, constant temperature control, uniform heating, so as to achieve the best blowing effect.

3: The use of hyperbolic arm four pull rod mold structure, cross balance fixed sliding, to ensure that the machine under high pressure does not expand the mold,mold locking is stable, fast running speed.

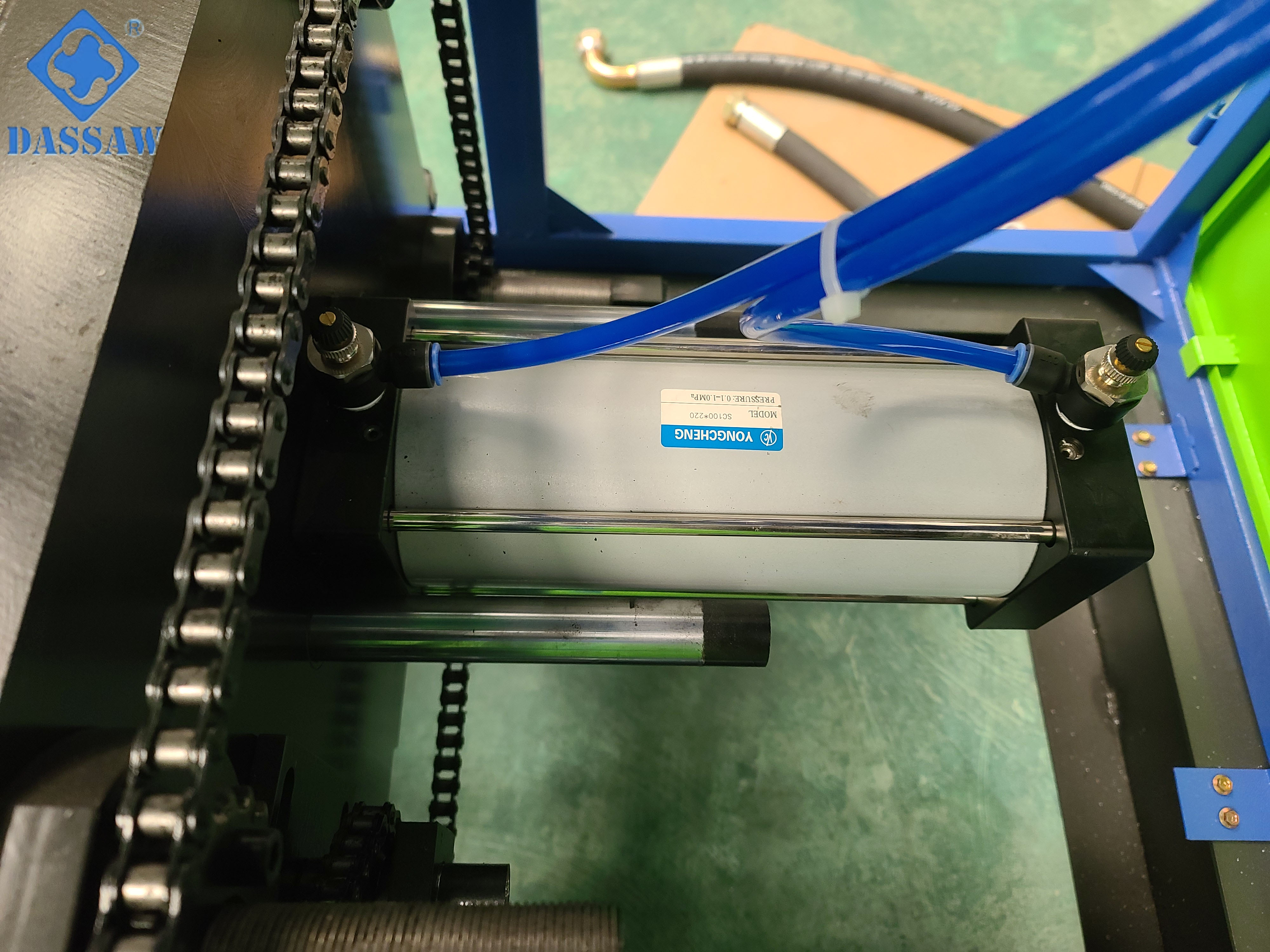

4: Gas path is divided into high pressure blowing and low pressure action tow pares, low pressure mechanical die closing, sealing, stretching; High pressure blow bottle forming.

5: Computer automatic control, easy operation, small size, less investment, one person operation, simple and safe.

DA-28 (1)

Packaging & Shipping

包装及运输1包装及运输2

Our Services
1.Full tracking service, good after-sales service
2.Advanced product technology
3.Rich industry experience
Company Information

Shandong Dasuo Import & Export Co., Ltd. Is a company specializing in the production of bottle blowing machines and their auxiliary equipment. The main products include: Bottle blowing machines, Air compressors, Auxiliary equipment and Accessories. The products are sold well all over the country and exported to the United States, Germany, India, Thailand, Hong Kong, Canada and other countries and regions. Over the years, We have been committed to improving technology, Studying market trends, And developing new products to meet the various needs of customers and have established good cooperative relations with customers.

工厂展示1
FAQ

Q: Are you a factory or trading company?

A.we are factory.

Q: How long the warranty period?

A: All of products have one year warranty.

O: what is your delivery time and payment term?

A: About parts , he delivery date is usually 3-5days after payment ,For machines usually 10-20 working days after  T/T 50% as deposit, when we completed the producing and packing,we will give customer the photo of goods and package.Then,customer pay the 50% balance

Q: How about the quality of machine?

A:Dassaw always pays attention to quality issues, conducts quality control from the beginning to the end, and will test the machines strictly before packaging and shipping.

Q: Can we visit your factory?

A: Yes, you are welcome to visit our factory.We are willing to show you the whole production flow.

Q: where is your factory located,how do we get there?

A: We are in  Jinan City, Shandong Province. You can take the high-speed rail to Jinan West Station or by air to Yaoqiang international air port , then we will pick you up


Molding

Clamping force

100kg

Clamping stroke

260mm

Stretching stroke

450mm

Min mould thickness

200mm

Max mould thickness

300mm

Template effective area

500*460mm

Number of cavity

1cavities

Theoretical output

250-400bbh

Electrical System

Power of machine

0.1KW

Installed Power of heater

38KW

Number of Lamp Layers

10Layers

Air Compresor

Operating Pressure

7-9kg/cm2

Low pressure air consumption

600ltr/min

Blowing Pressure

≤30kg/cm2

High pressure air consumption

1600ltr/min

Container

Container volume

5-10L

Bottle height

≤350mm

Preform inner diameter

28-120mm

Product material

PET

Blower machine

Blower size

1950*650*1750mm

Blower weight

750kg

Heater machine

Heater size

2170*670*1600mm

Heater weight

400kg
