NTGM-6W Low-pressure normal temperature water-cooled dryer for cooling air compressors
You are here: Home » Products » Machine Auxiliary Equipment » Air Dryer » NTGM-6W Low-pressure normal temperature water-cooled dryer for cooling air compressors

NTGM-6W Low-pressure normal temperature water-cooled dryer for cooling air compressors

  1. Color:silver、Customizable
  2. Size:800*550*970mm
  3. Weight:125Kg
  4. Sales:Direct Sales
  5. Min Order: 1Pc
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • NTGM-6W

  • Dassaw

Product Description


Refrigerated dryer, the main role is to remove the water in compressed air, to ensure the normal operation of air-using equipment and product quality. It reduces the temperature of compressed air through refrigeration technology, so that the water vapour condenses into liquid water, and then discharged, so as to achieve the purpose of drying compressed air.

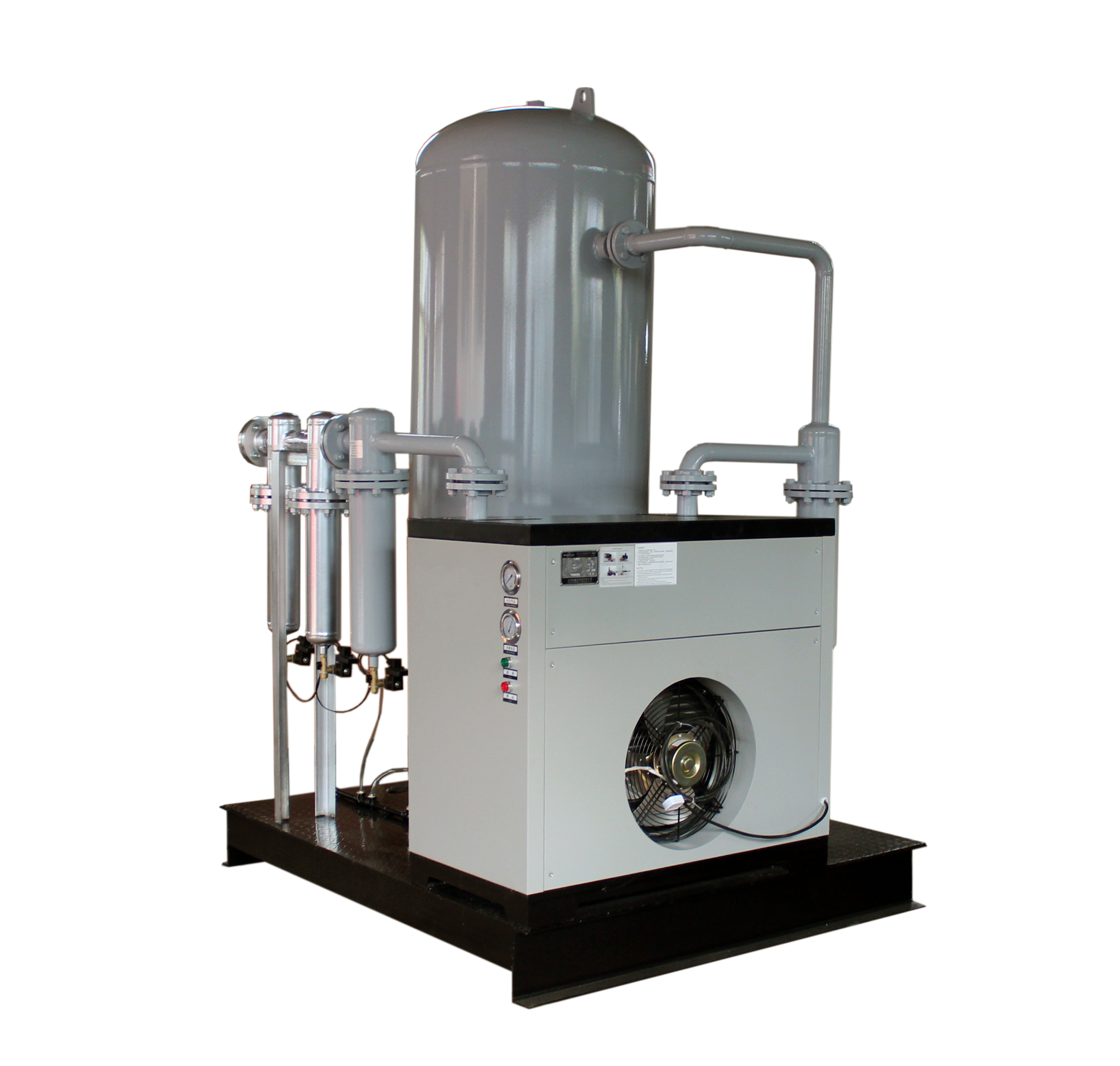

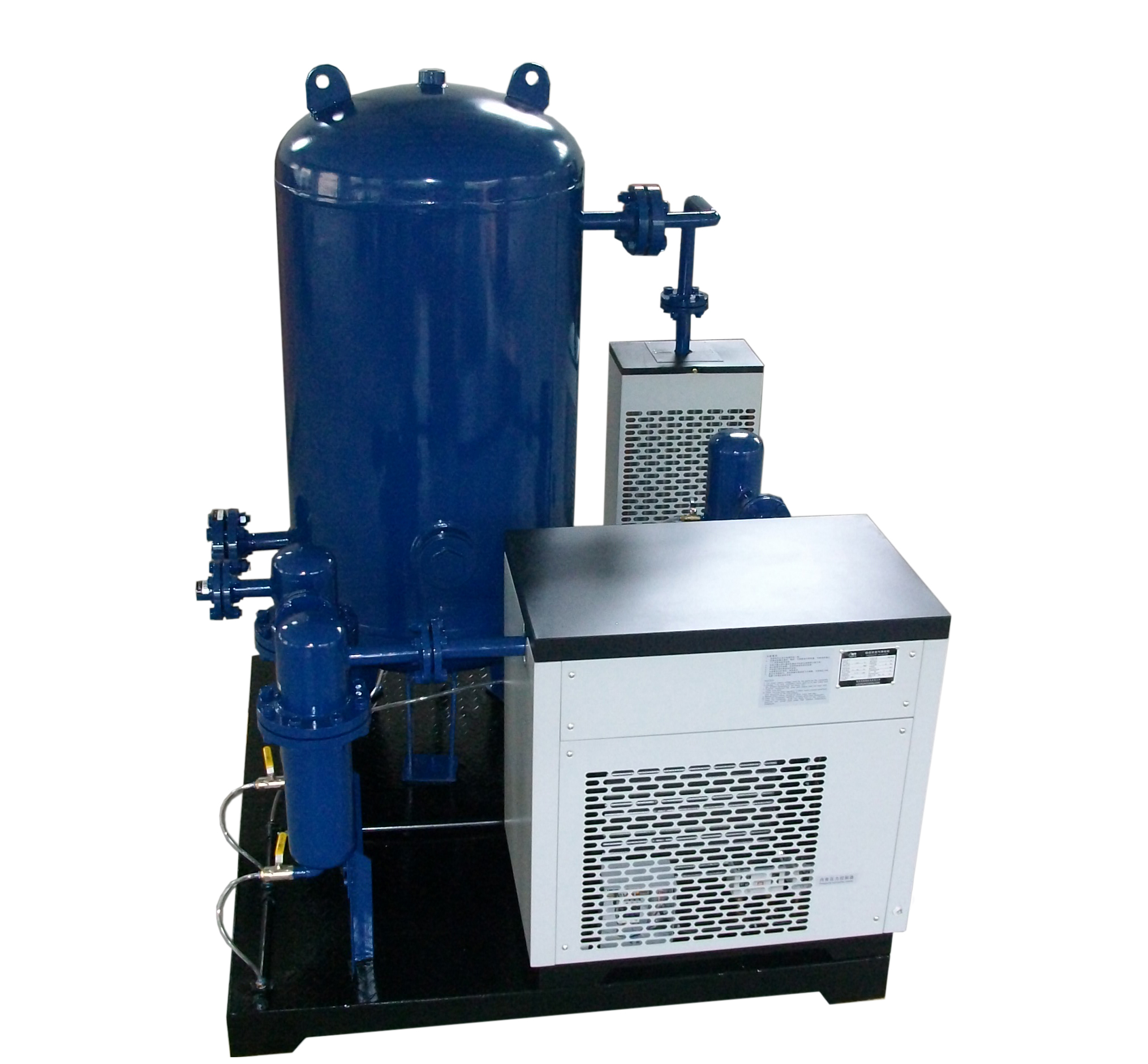

冷干机 储气罐组合1
Packaging & Shipping


包装及运输1 包装及运输2
Our Services
1.Full tracking service, good after-sales service
2.Advanced product technology
3.Rich industry experience
Company Information

Shandong Dassaw Machinery Manufacturing Co., Ltd. is a professional manufacturer specializing in the R&D, production, and export of PET bottle blowing machines, dedicated to providing global customers with efficient, stable, and cost-effective bottle blowing equipment and complete turnkey production line solutions.

With a mature manufacturing system and strict quality control, our machines are widely used in the production of bottles for beverages, mineral water, pesticides, cosmetics, pharmaceuticals, hot-fill applications, and various daily-use products, meeting diverse industry and bottle design requirements.

Focusing on in-house manufacturing of bottle blowing machines as our core competitiveness, we are supported by an experienced engineering team that provides professional technical assistance throughout equipment delivery, installation & commissioning, and daily operation, ensuring long-term stable and efficient production.

In addition, we offer a full range of auxiliary equipment, including air compressors, refrigerated air dryers, air tanks, and water chillers, enabling one-stop supply from single machines to complete production lines. Customized solutions are available based on customers’ bottle designs, output requirements, and application industries.

Customer-oriented service, fast response, and professional communication are key strengths of Dassaw Machinery. We sincerely look forward to cooperating with partners worldwide to achieve mutual success.

微信图片_20250825102714_118_1

FAQ

Q: Are you a factory or trading company?

A.We are the DASSAW factory.

Q: How long the warranty period?

A: All DASSAW products come with a one-year warranty.

O: what is your delivery time and payment term?

A: About parts , he delivery date is usually 3-5days after payment ,For machines usually 10-20 working days after  T/T 50% as deposit, when we completed the producing and packing,we will give customer the photo of goods and package.Then,customer pay the 50% balance

Q: How about the quality of machine?

A:Dassaw always pays attention to quality issues, conducts quality control from the beginning to the end, and will test the machines strictly before packaging and shipping.

Q: Can we visit your factory?

A:Yes, you are welcome to visit our DASSAW factory. We would be happy to show you the entire production process.

Q: where is your factory located,how do we get there?

A: We are in  Jinan City, Shandong Province. You can take the high-speed rail to Jinan West Station or by air to Yaoqiang international air port , then we will pick you up.


Working condition and technical data

Inlet temperature

45

Inlet pressure

0.2~1.4MPa

Pressure drop

0.02MPa

Pressure dew point

2-10℃(normal pressure-17~-23 ℃)

Installation method

Cannot be installed indoors

Cooling water temperature

32

Cooling water pressure

0.2~0.4MPa

Refrigerant

R22

Drain pipe

RC1/2 Auto drain

Rated pressure

1.0MPa

Model

Flow

Size

Power

Weight

Interface size

Power supply

m³/min

Mm

HP

KG

G

V/Ph/HZ

NTGM-6W

6

800*550*970

2

125

RC1’’

220/1/50

NTGM-8W

8

950*550*970

2

140

RC1’’

220/1/50

NTGM-10W

10

1060*550*1030

2.5

160

RC1’’

220/1/50

NTGM-13W

13

1250*600*920

3

195

RC1’’

380/3/50

NTGM-15W

15

1350*600*1140

3

260

RC1’’

380/3/50

NTGM-20W

20

1600*650*1300

4

300

RC1 ¼’’

380/3/50

NTGM-25W

25

1700*830*1550

5

400

RC1 ¼’’

380/3/50

NTGM-30W

30

1800*850*1550

6

450

RC1 ¼’’

380/3/50

NTGM-40W

40

1800*850*1550

8

560

RC1 ¼’’

380/3/50

NTGM-50W

50

1800*900*1750

10

610

RC1 ½’’

380/3/50

NTGM-60W

60

1800*900*1750

12

690

RC1 ½’’

380/3/50

NTGM-80W

80

2000*1000*2050

15

850

RC2’’

380/3/50

NTGM-100W

100

2500*1200*2150

20

1350

RC2’’

380/3/50

NTGM-120W

120

2500*1200*2150

25

1500

RC2 ½’’

380/3/50

NTGM-150W

150

3200*1500*2300

35

1800

RC2 ½’’

380/3/50

NTGM-200W

200

3500*1600*2500

35

2200

RC3’’

380/3/50
