DA-28A 10-25L PET semi-automatic extrusion blow molding machine
You are here: Home » Products » Semi-automatic Bottle Blowing Machine » DA-28A 10-25L PET semi-automatic extrusion blow molding machine

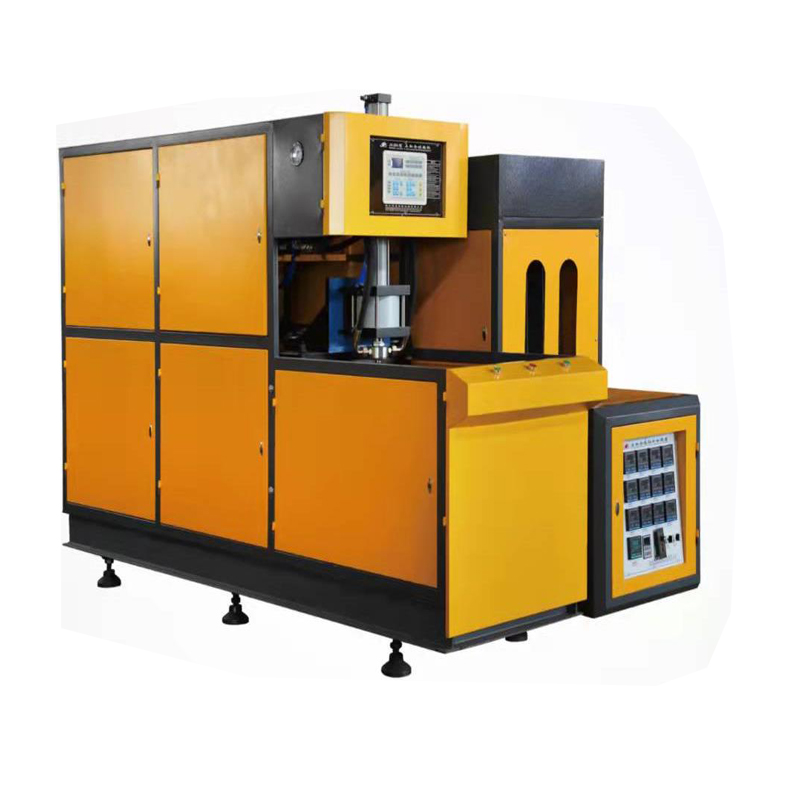

DA-28A 10-25L PET semi-automatic extrusion blow molding machine

  1. Color:Yellow、Customizable
  2. Min Order: 1Pc
  3. Size:2650*740*1750mm
  4. Weight:1250Kg
  5. Sales:Direct Sales
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • DA-28A

  • Dassaw

Product Description

1: DA-28A semi-automatic bottle blowing machine is suitable for 10L-25L of various shapes of oil can,disposable buckets, secondary buckets and other products.

2: The machine adopts far infrared rotary oven,frequency control, constant temperature control, uniform heating, so as to achieve the best blowing effect.

3: The use of hyperbolic arm four pull rod mold structure, cross balance fixed sliding, to ensure that the machine under high pressure does not expand the mold,mold locking is stable, fast running speed.

4: Gas path is divided into high pressure blowing and low pressure action tow pares, low pressure mechanical die closing, sealing, stretching; High pressure blow bottle forming.

5: Computer automatic control, easy operation, small size, less investment, one person operation, simple and safe.


半自动 (21)

Packaging & Shipping

包装及运输1包装及运输2

Our Services
1.Full tracking service, good after-sales service
2.Advanced product technology
3.Rich industry experience
Company Information

Shandong Dasuo Import & Export Co., Ltd. Is a company specializing in the production of bottle blowing machines and their auxiliary equipment. The main products include: Bottle blowing machines, Air compressors, Auxiliary equipment and Accessories. The products are sold well all over the country and exported to the United States, Germany, India, Thailand, Hong Kong, Canada and other countries and regions. Over the years, We have been committed to improving technology, Studying market trends, And developing new products to meet the various needs of customers and have established good cooperative relations with customers.

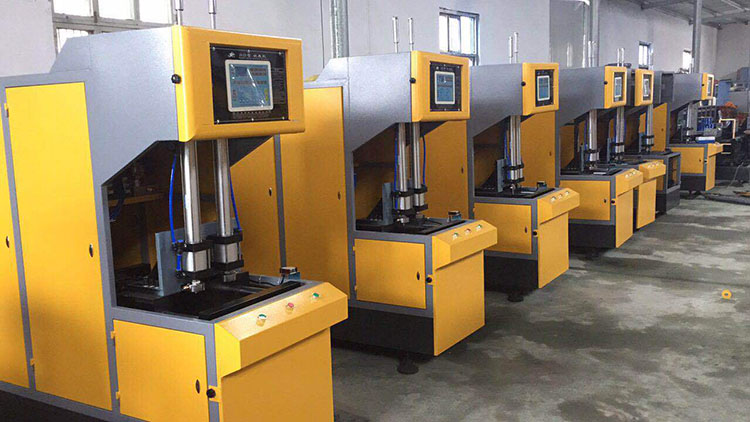

工厂展示1
FAQ

Q: Are you a factory or trading company?

A.we are factory.

Q: How long the warranty period?

A: All of products have one year warranty.

O: what is your delivery time and payment term?

A: About parts , he delivery date is usually 3-5days after payment ,For machines usually 10-20 working days after  T/T 50% as deposit, when we completed the producing and packing,we will give customer the photo of goods and package.Then,customer pay the 50% balance

Q: How about the quality of machine?

A:Dassaw always pays attention to quality issues, conducts quality control from the beginning to the end, and will test the machines strictly before packaging and shipping.

Q: Can we visit your factory?

A: Yes, you are welcome to visit our factory.We are willing to show you the whole production flow.

Q: where is your factory located,how do we get there?

A: We are in  Jinan City, Shandong Province. You can take the high-speed rail to Jinan West Station or by air to Yaoqiang international air port , then we will pick you up






Molding

Clamping force

100KG


Clamping stroke

360mm


Stretching stroke

500mm


Min mould thickness

350mm


Max mould thickness

400mm


Template effective area

420*640mm


Number of cavity

1cavities

Theoretical output

180-250bph



Electrical System

Power of machine

0.1kw


Installed Power of heater

38kw


Number of Lamp Layers

19Layers



Air Compresor

Operating Pressure

7-9kg/cm²


Low pressure air consumption

800ltr/min


Blowing Pressure

30kg/cm²


High pressure air consumption

2400ltr/min



Container

Container volume

10-25L


Bottle height

500mm


Preform inner diameter

45-130mm


Product material

PET

Blower machine

Blower size

2650*740*1750mm


Blower weight

1250kg

Heater machine

Heater size

2950*670*1620mm


Heater weight

600kg
