Ds-90 One-out-two fully automatic extrusion blow molding machine

Color：Green、Yellow、Customizable
Size：2700*1600*2000mm
Weight：1800Kg
Sales：Direct Sales
Min Order: 1Pc

Quantity:
Availability:





Inquiry Add to Basket

Model:
Ds-90
Brand:
DASSAW

Molding	Clamping force	180kg
	Clamping stroke	100mm
	Stretching stroke	450mm
	Bottom stroke	30mm
	Cavity pitch	115mm
	Number of cavity	2cavites
	Carriage Unit	60pcs
Theoretical output		1300-1800bbh
Electrical System	Total power	22kw
	Heater power	90kw
	Number of lamp	48pcs
Air Compresor	Operating Pressure	7kg/cm²
	Low pressure air consumption	1000ltr/min
	Blowing Pressure	≤30kg/cm²
	High pressure air consumption	2000-2500 ltr/min
container	Max container volume	1.5L
	Max neck outer diameter	18-48mm
	Max container diameter	100mm
	Max container height	330mm
Preform Loader	Main machine size	*270016002000mm*
Preform Loader	Main machine weight	1800kg
Preform Loader	Preform loader size	*190011*002700mm
Preform Loader	Preform loader weight	350kg

Product Description

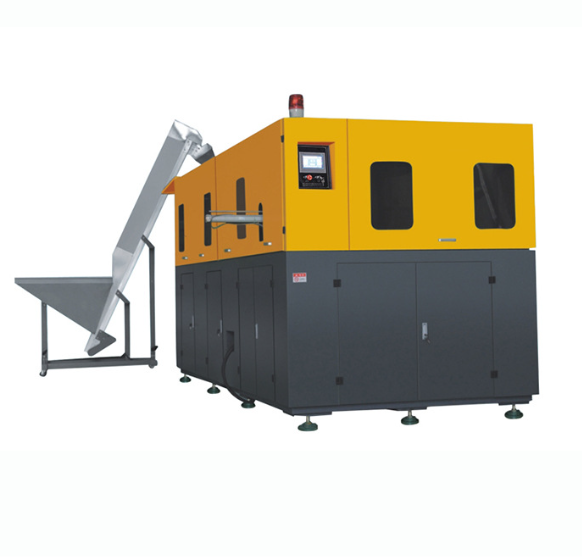

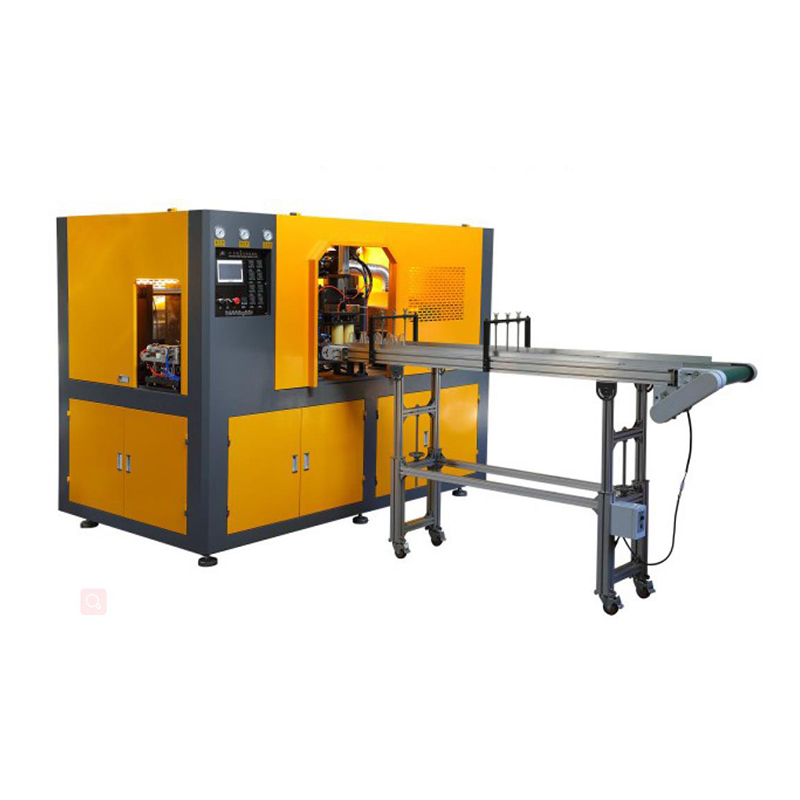

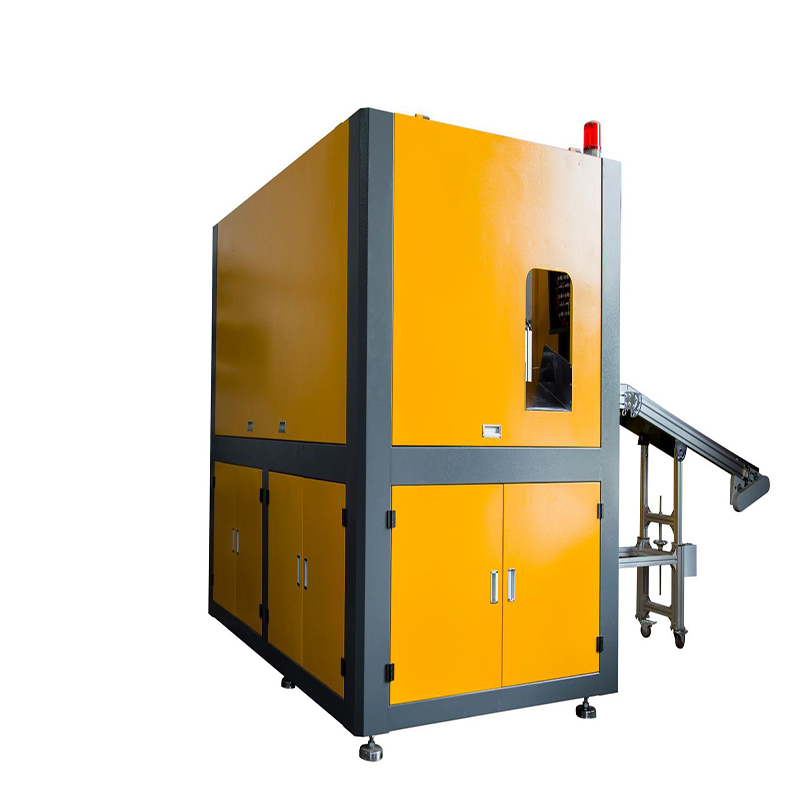

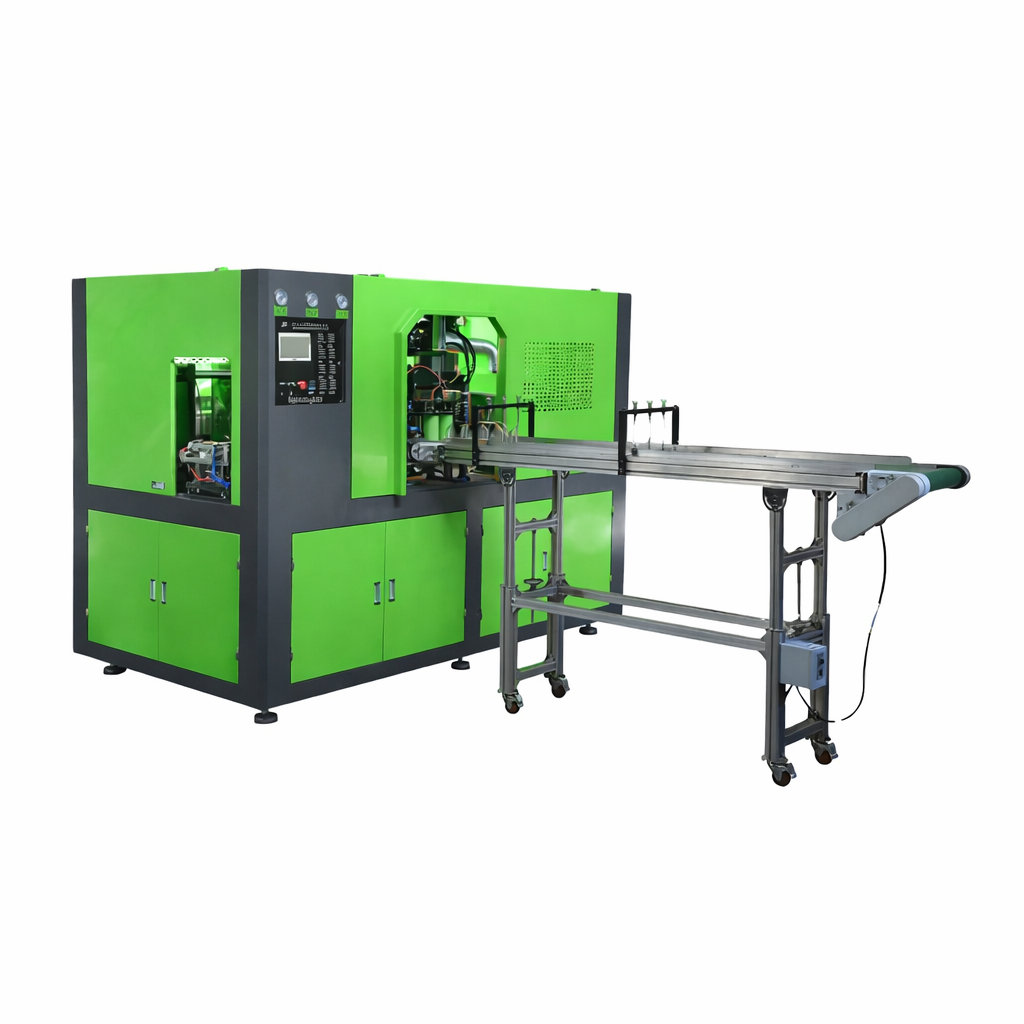

1: The DS-90 is a fully automatic blow molding machine manufactured by DASSAW Machinery, specifically designed for blowing bottles with capacities ranging from 100 to 1500 milliliters. It is suitable for producing various shapes of water bottles, pesticide bottles, and daily chemical product bottles using crystalline plastics such as PET, PCA, and AS as raw materials.

2: it can automatically feed, suck and insert the blank manually to meet the needs of different products.

3:This machine is cost-effective, stable performance,simple operation.

全自动吹瓶机 (1)

Packaging & Shipping

包装及运输1 包装及运输2

Our Services

1.Full tracking service, good after-sales service

2.Advanced product technology

3.Rich industry experience

Company Information

Shandong Dassaw Machinery Manufacturing Co., Ltd. is a professional manufacturer specializing in the R&D, production, and export of PET bottle blowing machines, dedicated to providing global customers with efficient, stable, and cost-effective bottle blowing equipment and complete turnkey production line solutions.

With a mature manufacturing system and strict quality control, our machines are widely used in the production of bottles for beverages, mineral water, pesticides, cosmetics, pharmaceuticals, hot-fill applications, and various daily-use products, meeting diverse industry and bottle design requirements.

Focusing on in-house manufacturing of bottle blowing machines as our core competitiveness, we are supported by an experienced engineering team that provides professional technical assistance throughout equipment delivery, installation & commissioning, and daily operation, ensuring long-term stable and efficient production.

In addition, we offer a full range of auxiliary equipment, including air compressors, refrigerated air dryers, air tanks, and water chillers, enabling one-stop supply from single machines to complete production lines. Customized solutions are available based on customers’ bottle designs, output requirements, and application industries.

Customer-oriented service, fast response, and professional communication are key strengths of Dassaw Machinery. We sincerely look forward to cooperating with partners worldwide to achieve mutual success.

FAQ

Q: Are you a factory or trading company?

A.We are the DASSAW factory.

Q: How long the warranty period?

A: All DASSAW products come with a one-year warranty.

O: what is your delivery time and payment term?

A: About parts , he delivery date is usually 3-5days after payment ,For machines usually 10-20 working days after T/T 50% as deposit, when we completed the producing and packing,we will give customer the photo of goods and package.Then,customer pay the 50% balance

Q: How about the quality of machine?

A:Dassaw always pays attention to quality issues, conducts quality control from the beginning to the end, and will test the machines strictly before packaging and shipping.

Q: Can we visit your factory?

A:Yes, you are welcome to visit our DASSAW factory. We would be happy to show you the entire production process.

Q: where is your factory located,how do we get there?

A: We are in Jinan City, Shandong Province. You can take the high-speed rail to Jinan West Station or by air to Yaoqiang international air port , then we will pick you up.
