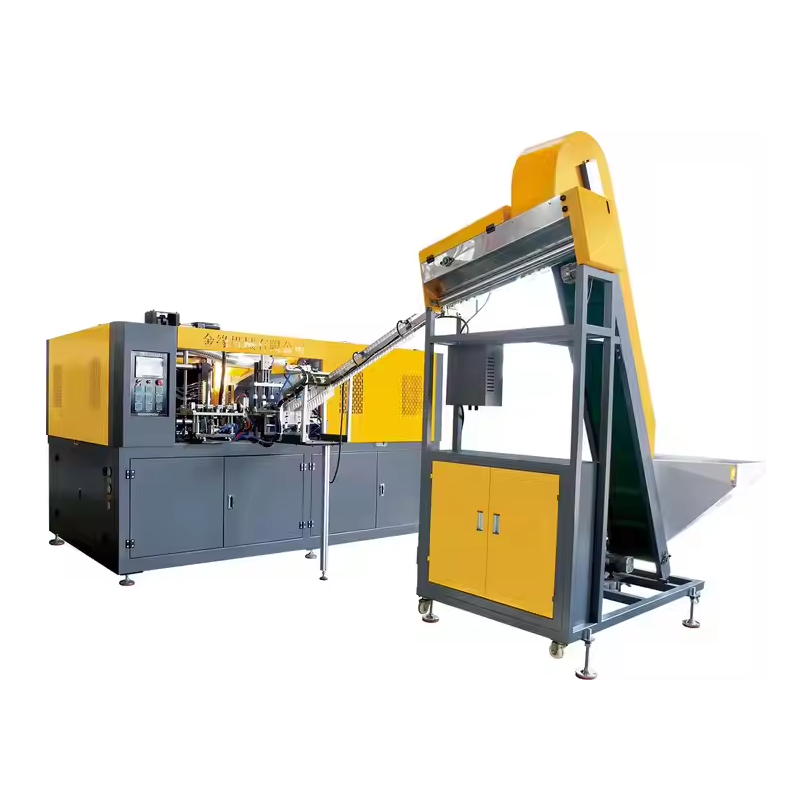

DS-130 Fully automatic one-out-two blow molding machine
You are here: Home » Products » Automatic Bottle Blowing Machine » DS-130 Fully automatic one-out-two blow molding machine

DS-130 Fully automatic one-out-two blow molding machine

  1. Color:Yellow、Customizable
  2. Size:3150*1900*2000mm
  3. Weight:2000Kg
  4. Sales:Direct Sales
  5. Min Order: 1Pc
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Ds-130

  • Dassaw

Product Description
全自动 (16)





1: DS-130 model full-automatic 1out 2 bottle blowing machine, specializing in blowing 10-2000ml capacity, suitable for blowing with PET, PC and other crystalline plastic as raw materials of various shapes of glass bottles, beverage bottles, daily chemical bottles, small wide mouth bottles and other products.

2:it can automatically feed,suck and insert the blank manually to meet the needs of different products.

3: This machine is servo mold closing, servo shift, fast production speed, stable performance, easy to operate.

Packaging & Shipping

包装及运输1包装及运输2

Our Services
1.Full tracking service, good after-sales service
2.Advanced product technology
3.Rich industry experience
Company Information

Shandong Dasuo Import & Export Co., Ltd. Is a company specializing in the production of bottle blowing machines and their auxiliary equipment. The main products include: Bottle blowing machines, Air compressors, Auxiliary equipment and Accessories. The products are sold well all over the country and exported to the United States, Germany, India, Thailand, Hong Kong, Canada and other countries and regions. Over the years, We have been committed to improving technology, Studying market trends, And developing new products to meet the various needs of customers and have established good cooperative relations with customers.

FAQ

Q: Are you a factory or trading company?

A.we are factory.

Q: How long the warranty period?

A: All of products have one year warranty.

O: what is your delivery time and payment term?

A: About parts , he delivery date is usually 3-5days after payment ,For machines usually 10-20 working days after  T/T 50% as deposit, when we completed the producing and packing,we will give customer the photo of goods and package.Then,customer pay the 50% balance

Q: How about the quality of machine?

A:Dassaw always pays attention to quality issues, conducts quality control from the beginning to the end, and will test the machines strictly before packaging and shipping.

Q: Can we visit your factory?

A: Yes, you are welcome to visit our factory.We are willing to show you the whole production flow.

Q: where is your factory located,how do we get there?

A: We are in  Jinan City, Shandong Province. You can take the high-speed rail to Jinan West Station or by air to Yaoqiang international air port , then we will pick you up



Molding

Clamping force

200kg

Clamping stroke

140mm

Stretching stroke

450mm

Bottom stroke

30mm

Cavity pitch

115mm

Number of cavity

2cavites

Carriage Unit

66pcs

Theoretical output

2000-2600bbh

Electrical System

Total power

32kw

Heater power

30kw

Number of lamp

16pcs

Air Compresor

Operating Pressure

7kg/cm2

Low pressure air consumption

1200ltr/min

Blowing Pressure

≤30kg/cm2

High pressure air consumption

2000-2500 ltr/min

container

Max container volume

2L

Max neck outer diameter

18-38mm

Max container diameter

30-105mm

Max container height

280mm

Preform Loader

Main machine size

3150*1900*2000mm


Main machine weight

2000kg

Preform Loader

Preform loader size

1900*1150*2700mm


Preform loader weight

350kg
